Product Description

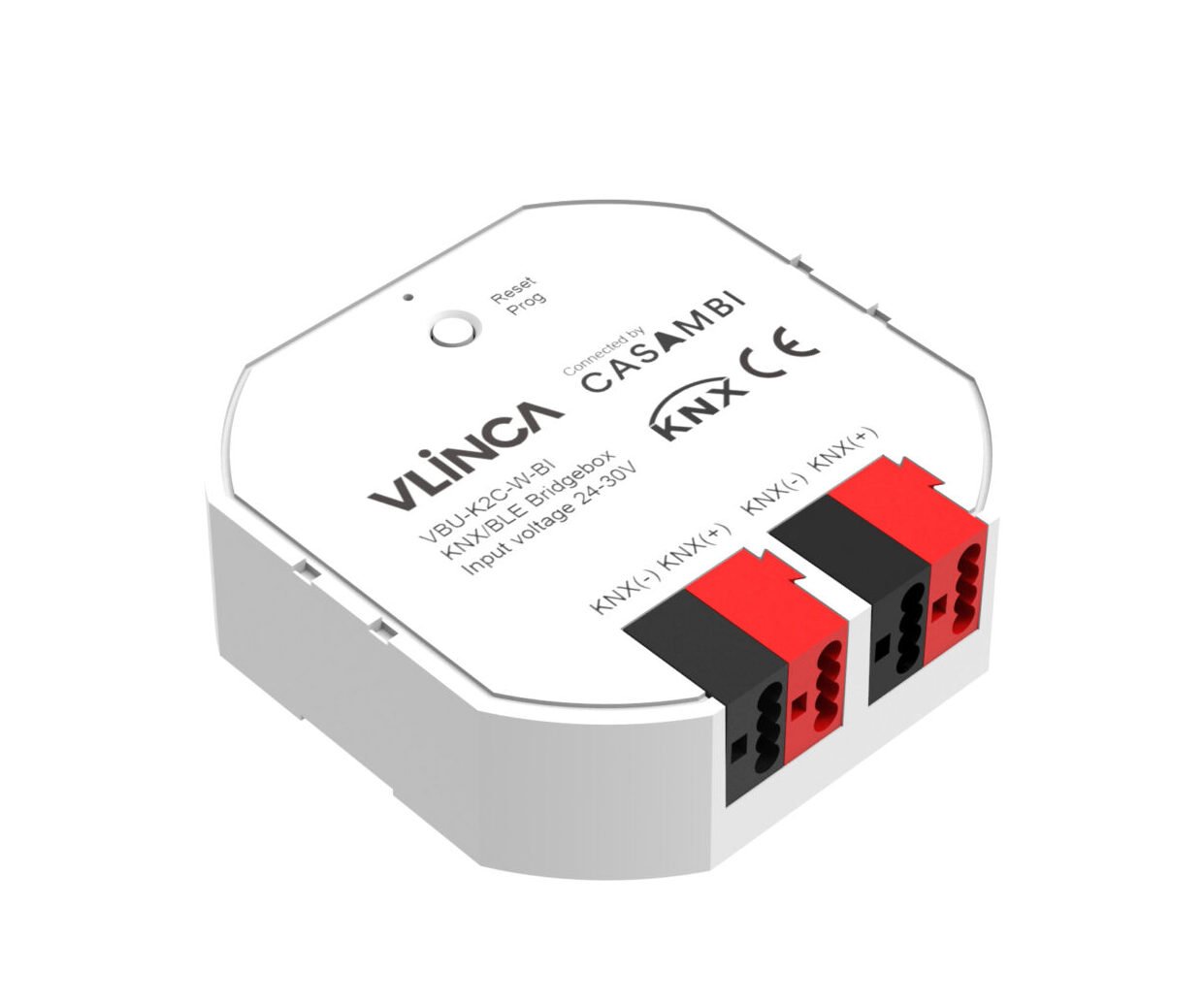

VBU-K2C-W-BI Bridge Box: KNX and CASAMBI Network Integration

The VBU-K2C-W-BI bridge box enables seamless interconnection between KNX systems and CASAMBI networks, providing a unified control solution for smart building automation.

Key Functions

– Supports up to 32 KNX channels and 32 CASAMBI scenes.
– Control options include:
– Unidirectional Communication:
– KNX → CASAMBI: Up to 16 channels
– CASAMBI → KNX: Up to 16 channels
– Bidirectional Communication: CASAMBI ↔ KNX: Up to 16 channels
– Allows scene on/off control and dimming functionality from KNX to CASAMBI.

Features and Benefits

– Seamless Connectivity: Easily integrate CASAMBI and KNX systems for streamlined automation.
– Expandable: Register up to 32 KNX channels and 32 CASAMBI scenes for versatile control.

Technical Data

– Control Bus: KNX/EIB
– Input Voltage: 24-30V
– Input Signal Port: Two-channel dry contact signals / one 24V signal
– Output Signal: Bluetooth
– Drain Bus Current: < 15mA
– Output Range: > 50m, line of sight
– Installation: Fits 80/86mm built-in junction box
– Temperature Range:
– Operating: -5°C to 45°C
– Storage: -25°C to 55°C
– Transportation: -25°C to 70°C
– Humidity: 0-80%, non-condensing

Physical Parameters

– Dimensions: 50.6 x 50.6 x 15 mm (L x W x H)
– Protection: IP20
– Colour: White

This bridge box simplifies smart building management by integrating KNX and CASAMBI systems, offering flexibility, control, and a compact design for easy installation.
